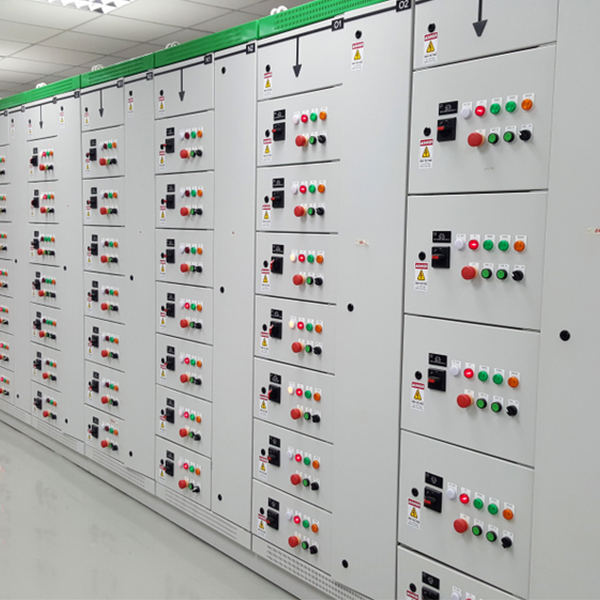

Motor Control Centre
Motor Control Centre
Meter panels are used to bring all the energy meters at a common point for ease of distribution, data analysis and safety reasons.
| Material | CRCA 1.6mm - 2mm |
|---|---|
| Protection Category | IP42 to IP55 |
| Incomer | TP/FP MCCB from 63A to 250A. |
| Outgoing | Energy meters with MCB rating from 10A to 63A No. of ways: 4/6/8/10/12/14 |
| Features | Meter boards consist of a compact busbar system controlled by three phase incomer MCCB. Outgoing connections are taken through MCB with separate energy meter for each connection. Separate pad locking of each metering compartment Acrylic meter windows for data reading in pad locked position |
| Enclosure Material | CRCA/GP Sheet/ Aluminum Sheet |
| Application | Meter panels are used in housing complex, commercial complex, shopping mall etc. |
